# 노드구동(Cloud)

### 서버(PC) 기본사항

1. 인터넷이 되는 환경에서 설치를 진행하여야합니다
2. 권장사항
   1. CPU: 4Core이상
   2. Memory: 16GB이상
   3. Disk: 500GB 이상(SSD 권장)
3. 첨부파일 다운로드

{% file src="<https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FCdN4c4KJrSizdP7kvVVq%2F2026_Guide.zip?alt=media&token=c59e0c88-8745-4294-86ca-f649e1c7fb2c>" %}

### AWS서버설치 예시

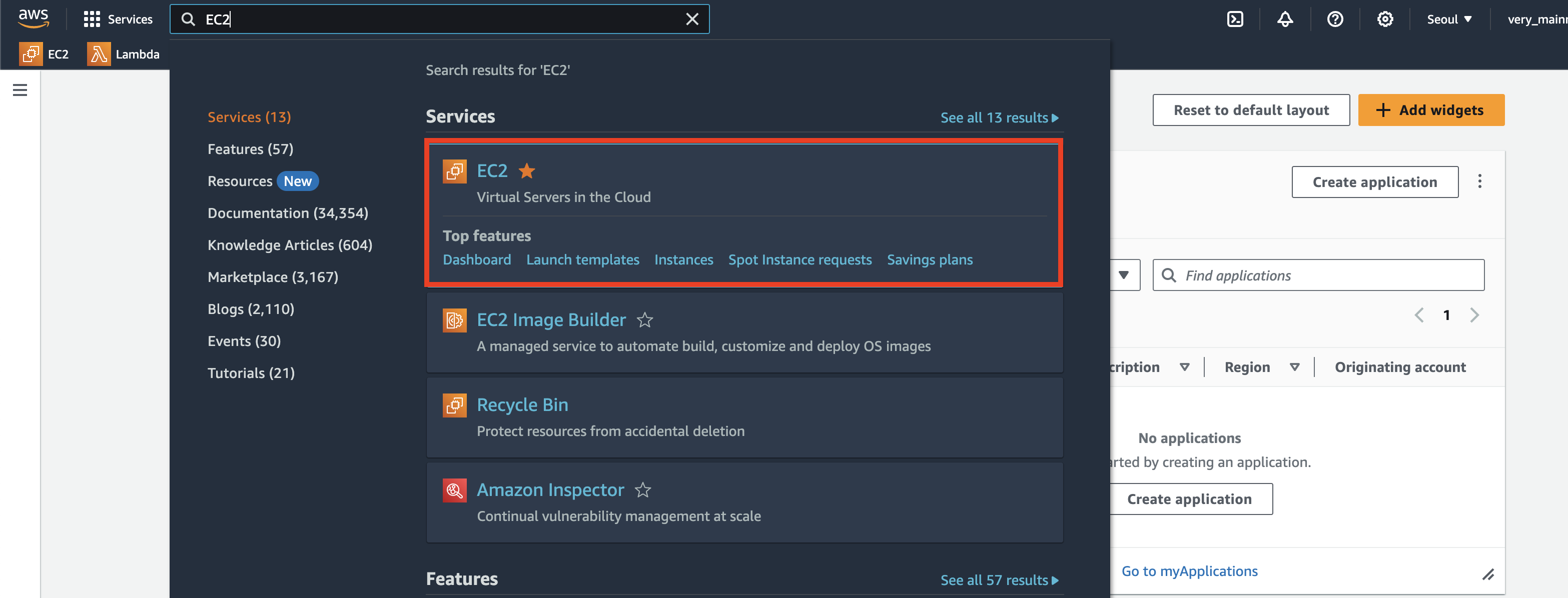

1. AWS로그인 → 검색창에 EC2검색

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FIDZpxbx3GOhgWvQq8Dzn%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-14%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%209.47.26.png?alt=media&#x26;token=55e26dd2-59c2-42d3-9a05-8566e0a99d58" alt=""><figcaption></figcaption></figure>

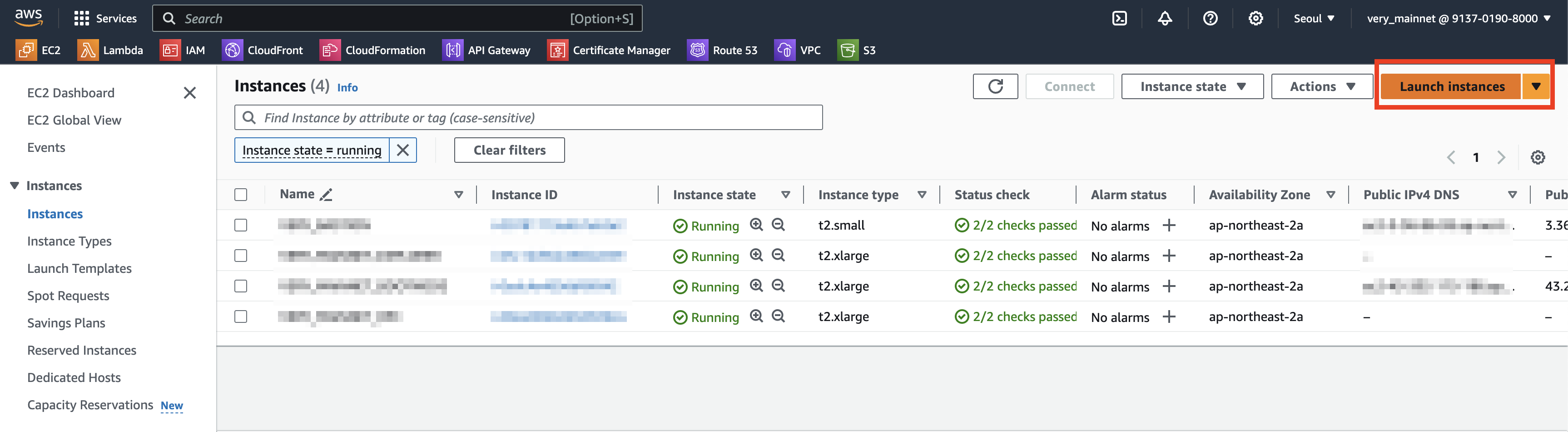

2. 우측상단에 Launch Instances클릭

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FGWXXCnmWLYVarGe7ch6c%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-14%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%209.48.00.png?alt=media&#x26;token=9b78572b-b859-4a78-a24a-5cde9d8b8172" alt=""><figcaption></figcaption></figure>

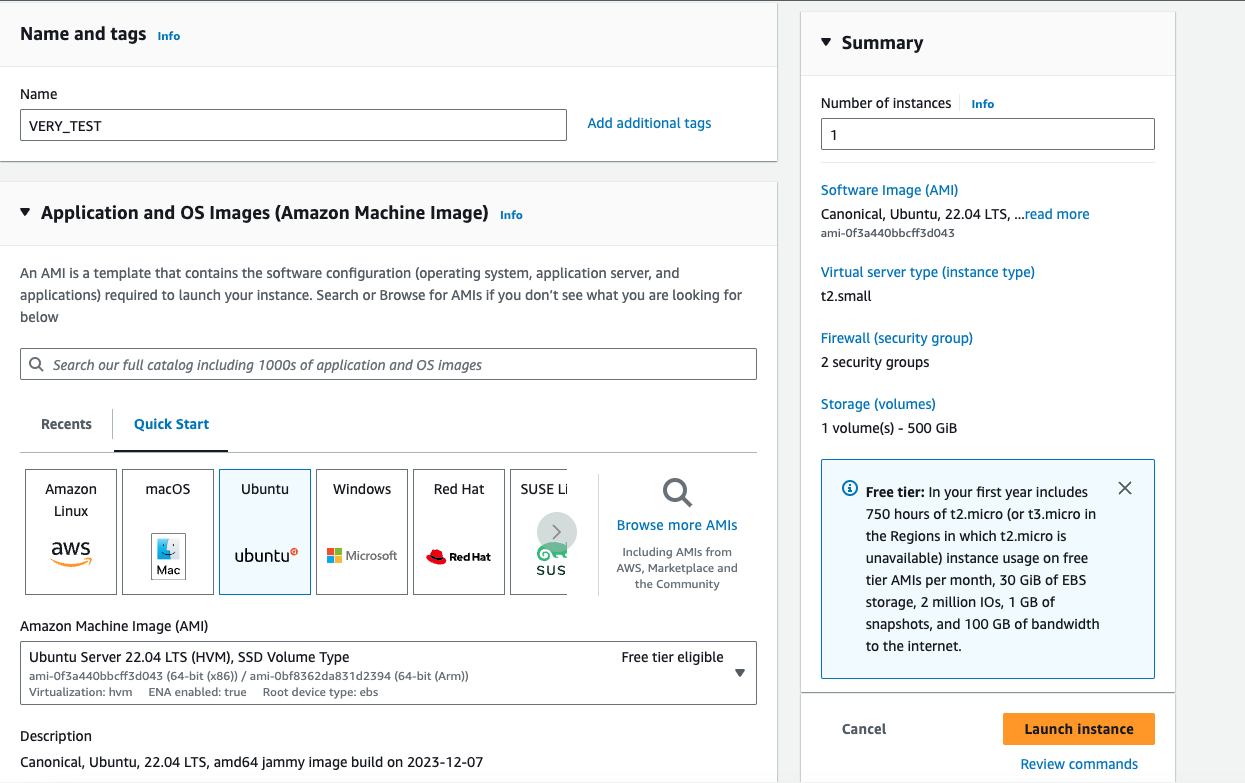

3. 서버설정

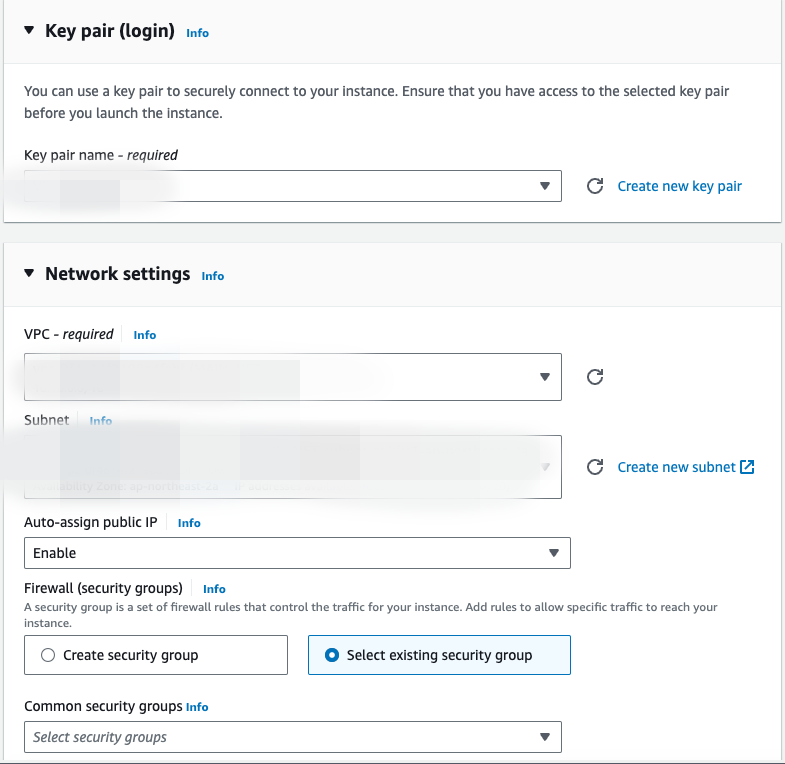

   1. **IP 및 Key정보는 보안상 모자이크 처리하였습니다(노출주의)**

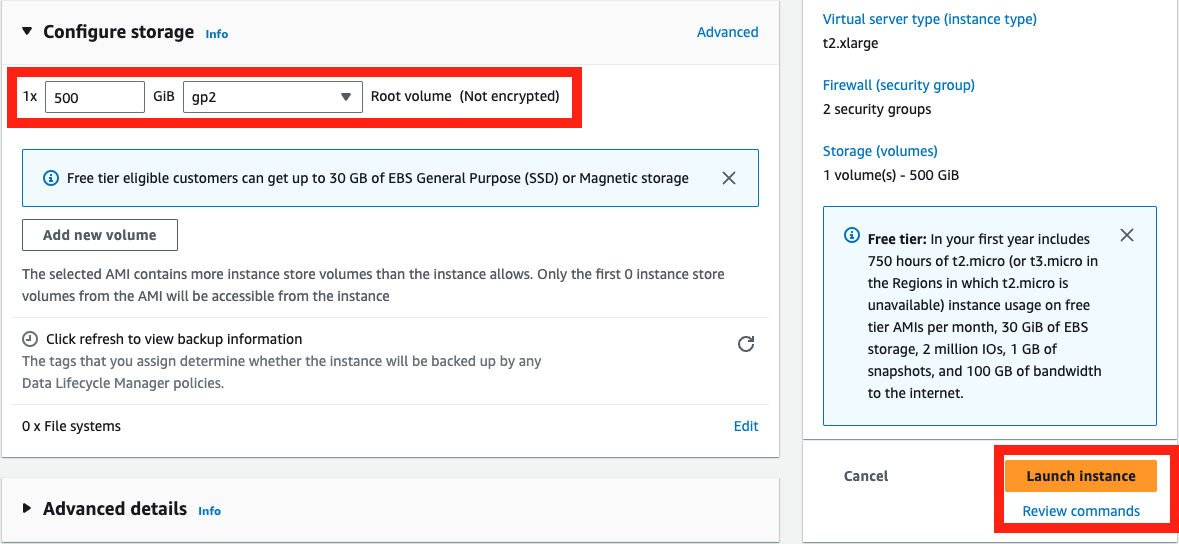

   2. 500GB설정 후 Launch Instatnce 클릭

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2Fhd3rmcObRhSrXxn7T5s7%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.30.29.png?alt=media&#x26;token=c8a092fe-e8bb-49ca-987b-102995ffae77" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FKjUKIkTMhI69FtZsZSP1%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.36.40.png?alt=media&#x26;token=a29cb39f-d87c-40dc-830c-43f694c9fa4e" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FfK3h99EqMzyEoH39KsQU%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.34.57.png?alt=media&#x26;token=c3ad4337-e2d4-4b18-a663-82510f5f9c89" alt=""><figcaption></figcaption></figure>

4. 서버접속

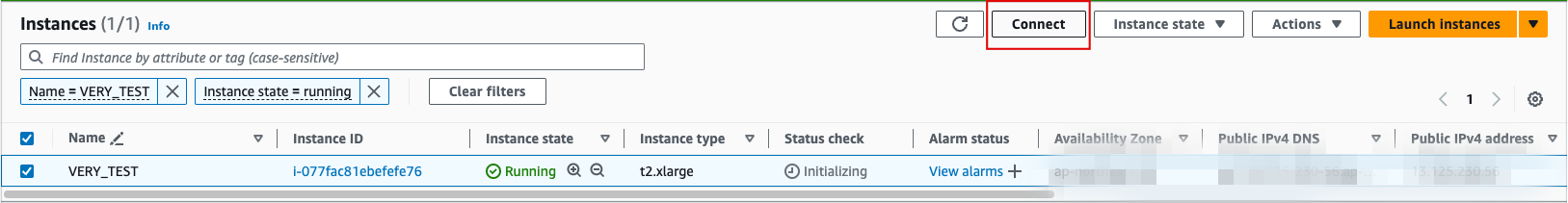

우측상단에 Connect버튼클릭

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2F1SXllX5shWeCyQ1SiunN%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.53.26.png?alt=media&#x26;token=21c46594-6e62-4f4d-999d-fdddebd91a9b" alt=""><figcaption></figcaption></figure>

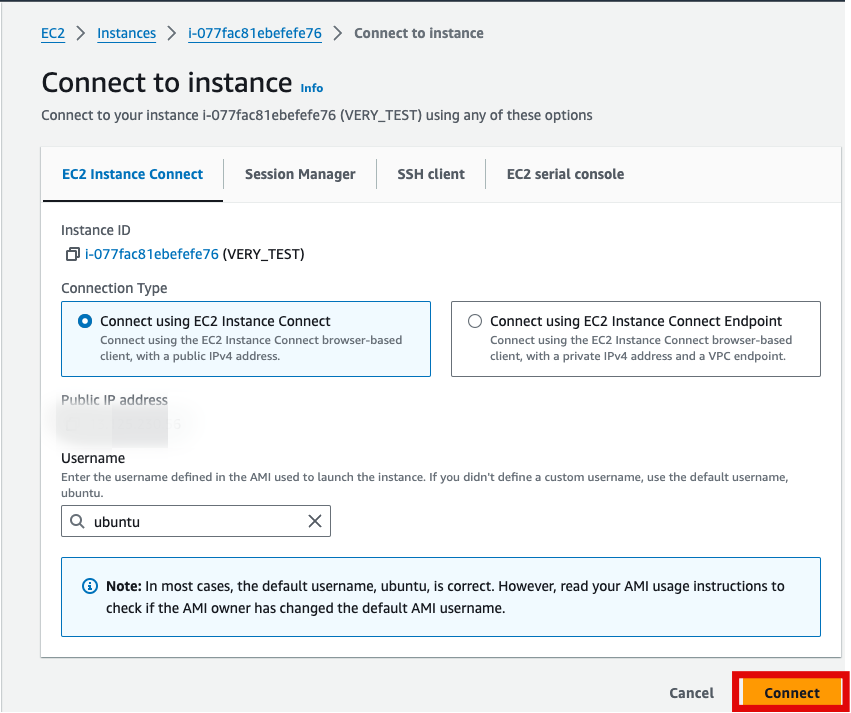

우측상단에 Connect버튼클릭

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FeBySgfjvn8yCtSpNAszJ%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.55.17.png?alt=media&#x26;token=546c8041-e7fe-4886-bced-48d8352f79a3" alt=""><figcaption></figcaption></figure>

5. 다운로드받은 첨부파일 서버로 복사

`scp -i {key파일위치} Guide.zip [ubuntu@](<mailto:ubuntu@3.36.86.95>){IP입력}:/home/ub untu`

{key파일위치} 부분에는 EC2생성시 다운로드되었던 key파일 위치를 넣어주시면 됩니다

* 예시) \~/Downloads/key.pem

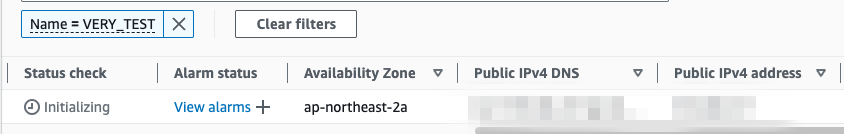

{IP입력} 부분에 설치된 서버 IP를 입력해주시면됩니다

* 모자이크한부분에 값이 해당됩니다 Public IPv4 address의 값을 입력해주시면됩니다

  * 예시) 1.1.1.1 이런형태로 4자리의 숫자로 이루어진 값입니다

  <figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FW7ZZVWd4W3dJmY4yHfTv%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%208.46.20.png?alt=media&#x26;token=cd979b95-75af-4132-8f97-68832fc3adc4" alt=""><figcaption></figcaption></figure>

6\. 5번항목에서 미리 복사한 파일 압축해제

```
sudo -s
apt-get -y update && apt-get -y install unzip
unzip Guide.zip
```

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FhfMs1QoJkYNX3bi2y10g%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%2011.03.00.png?alt=media&#x26;token=a6263790-670e-473d-b960-518d90e0dbf6" alt=""><figcaption></figcaption></figure>

7. KYC를 완료하면 ***\[노드 구동 전용 프라이빗키]***&#xB97C; 메일로 보내드립니다. \
   받으신 프라이빗키를 \[텍스트 편집기]로 src폴더 아래 key.json파일의 " "안에 입력하고 파일을 저장 해주세요. \
   프라이빗키에는 구매자의 VERY 분배 지갑주소가 매칭되어있어서 프라이빗키를 도난당해도 VERY는 안전합니다.

```
{
  "key": "Paste a private key here"
}
```

8. 0/1 실행

<pre><code><strong>cd Guide
</strong>sh 0_prepare.sh
sh 1_build.sh
</code></pre>

9. 2/3번 실행

```
sh 2_execute.sh
sh 3_log.sh
```

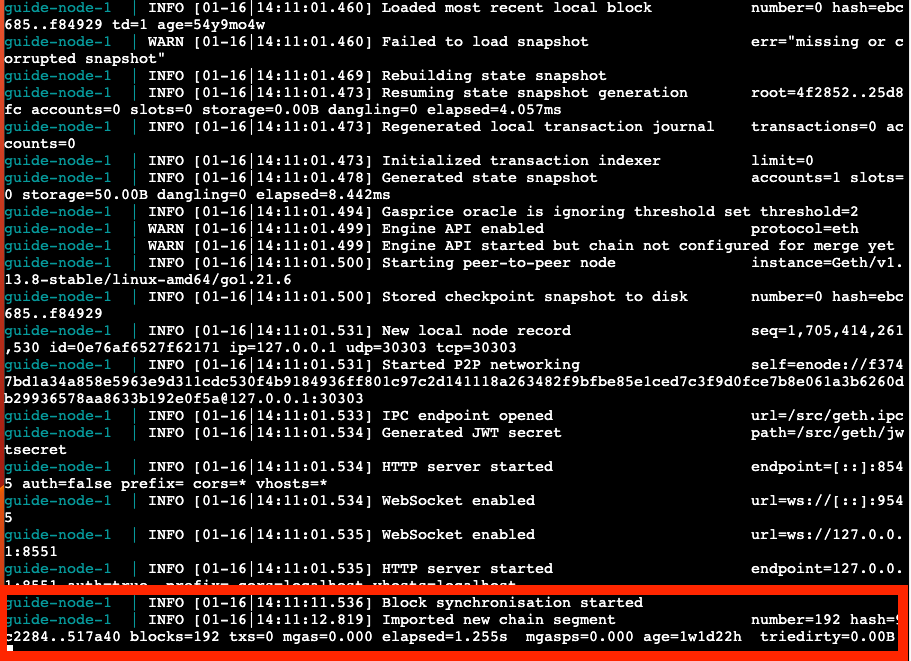

3번 실행시 아래 빨간박스와 같은 로그가 보이면 정상실행 완료된 것입니다

<figure><img src="https://4252673204-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fundys9IAnn0dvUnkwThT%2Fuploads%2FkUV4Kx20yqvGSBwUuecp%2F%E1%84%89%E1%85%B3%E1%84%8F%E1%85%B3%E1%84%85%E1%85%B5%E1%86%AB%E1%84%89%E1%85%A3%E1%86%BA%202024-01-16%20%E1%84%8B%E1%85%A9%E1%84%92%E1%85%AE%2011.11.19%20(1).png?alt=media&#x26;token=82be6053-0bc2-4b7a-ba4e-d0d937e5d5e5" alt=""><figcaption></figcaption></figure>
